UNIFORMITY IMPROVEMENT OF ICP PROCESSES

  Principal root causes of non-uniformity

  • Preprocess and chamber state (memory effect)
  • Concentration of reactive species (chemistry)
  • The main reason of non-uniformity is an inhomogeneous magnetic flux (physics).

  Possible actions

  • Measurement of  RF B-field of ICP coils for chamber fingerprint
  • Reengineering measures for coil unit to improve uniformity

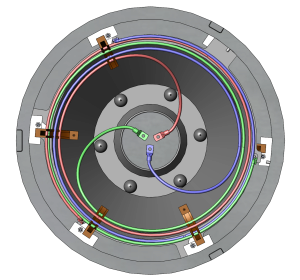

Magnetic flux density B ICP etcher with three coils
The magnetic field ICP etcher with three coils

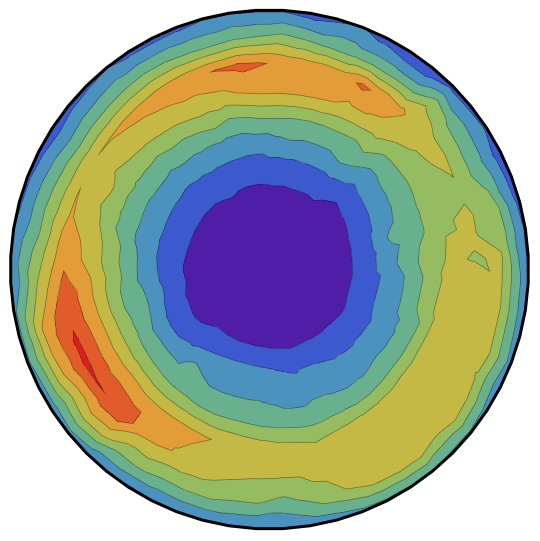

The diagram shows the non-uniformit in measured magnetic flux. The etch uniformity correlates with the B-field uniformity.
